Summary:
Embedded infrared sensors
Main function:
automatic induction, people come to switch on, people leave immediately close after a delay of electronic switches itself off. Non-contact, through the moment without big load of the impact of current, prolong service life. Non-contact, load without spark. Automatic metering switch, strong light sensor (not), take out photosensitive regulation (also can be adjusted at any light sensor or a random delay automatic induction) (way) for delay in induction scope, switch always connect, the activities of people left until after shut automatically. Otherwise not continuous delay (optional) time delay time adjustable: 5 seconds - 5 minutes (also can be customized according to customer's requirements, the scope of a few seconds to zero for 30 minutes) low power consumption: switch their power 0.016 W/h (< < 0.14) in power, more than any other brand products electricity-saving. Lightning function: AD hoc lightning protection device, which can effectively prevent thunder moments of such pressure switch of damage
Applicable occasions:
corridor, corridor, toilet, basement, warehouse, automatic garage places such as lighting and ventilation fan automatic convulsions, and other electrical automatic control function, and can be used for security purposes.
Instructions:
Specific:
check here or instructions.
|

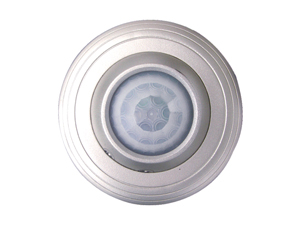

MODEL：Q-203S
|
Product Color: sliver paint and other
|
|
Material：housingABS
|
Packing: boxes, plastic and other
|
|
Regulating mode:LUX is adjustable, lighting time is adjustable, head is adjustable
|
Induction method: : PIR motion sensor + light sensor
|
|
Maximum load：2000W(Tengsten lamp)
|
Angle sensor : 180°
|
|
Imput Voltage：AC 220-240V 50/60Hz
|
Sensing distance :≤ 12M
|
|
Operating temperature:-5℃~38℃
|
Light time : 5 S-5 Minutes
|
|
spec:φ100XT70MM
|
Waterproof leve:IP42
|
|
weight：
|
Accessories : screw
|
